I have purchased a replacement bed for my 3D printer. I wish to have it mounted on a single linear rail.

Currently I am unable to drill properly into aluminum (due to problems with my drill).

Therefore, I'd like to print and use an adapter piece/plate to fasten the Y-carriage to the linear rail block. The bed has a thermal insulation foam so the area around the bottom of the Y-carriage plate/bed assembly doesn't seem to go over 60 °C.

My question is:

  • Which material should I use for this adapter piece, and why? (I have access to PLA, PETG and ABS.)
  • Should I use threaded inserts or fasten the Y-carriage with nuts?

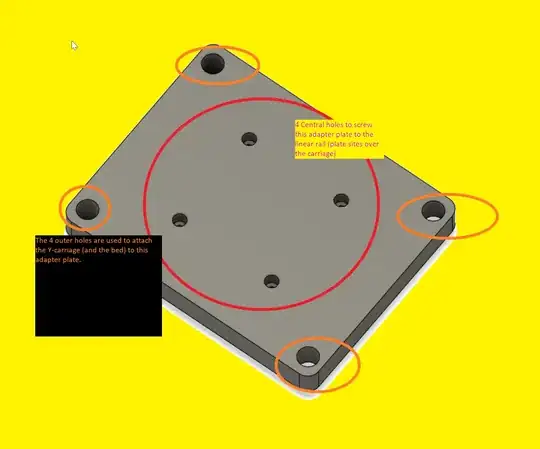

Please see the image below to have an idea as to what I mean by an adapter.

enter image description here

0scar
  • 35,554
  • 12
  • 65
  • 151
Phil
  • 153
  • 4
  • What is a heated insert? Are you talking about something like [this](https://www.amazon.com/initeq-M3-0-5-Threaded-Inserts-Printing/dp/B077CKDDVY/ref=asc_df_B077CKDDVY/?tag=hyprod-20&linkCode=df0&hvadid=242048563613&hvpos=&hvnetw=g&hvrand=1092820601930732420&hvpone=&hvptwo=&hvqmt=&hvdev=m&hvdvcmdl=&hvlocint=&hvlocphy=9032929&hvtargid=pla-409533404050&psc=1)? – Rykara Mar 19 '21 at 17:03
  • Yes I am @Rykara – Phil Mar 20 '21 at 20:16
  • 4
    Borrow a drill from someone else. Printing a mounting plate like that would be a terrible idea due to the limited stiffness of plastic, especially at above ambient temperatures. – Ezra Mar 20 '21 at 20:59

1 Answers1

1

Any thermoplastic is a bad choice to carry a heated bed. For an unheated bed, monolithic (cast, not printed) acrylic plate of sufficient thickness can be used.

To get the needed stiffness and temperature resistance, steel plate of about 2+mm is the best choice, followed by aluminium of a higher thickness. The latter can be sawed with woodworking equipment, if done slowly.

Trish
  • 21,915
  • 12
  • 50
  • 101
