Marlin 2.0.x bugfix: how do you define a specific driver to be used when driving a specific stepper?

Question

I'm using a TriGorilla 2560 and Marlin bugfix 2.0.x, and two stepper motors that I'm using as two Z-axes.

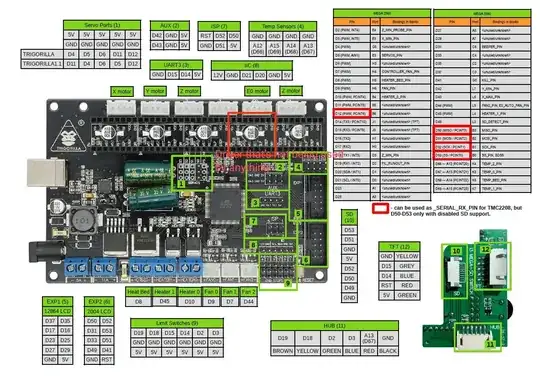

For some reason, both Z ports, and the E1 port are being driven by the same stepper driver:

The problem is that only one port is actually working well, meanwhile, the other ports (one Z port and E1 port) make the stepper jag as in this YouTube video.

Also, there is a driver that looks like it is not being used by anything:

So I wanted to try to assign that driver, to the E1 port (and a Z port), and see how it goes, if it does fix the issue or not, but the problem is that I have no idea on how to do that on Marlin.

Under the pins section either of TriGorilla and RAMPS, all I can find are the definitions of the ports, so I can swap port usage, but not assign a specific driver to a specific port.

If it helps, here's my Marlin zip.

Answer 1

I guess you are asking to swap drivers, this should be done on microcontroller pin level in the pins_[board_type].h file from Marlin. This has been described in e.g. this answer.

Or, do you mean:

#define Y_DRIVER_TYPE  A4988
#define Z_DRIVER_TYPE  A4988
//#define X2_DRIVER_TYPE A4988
//#define Y2_DRIVER_TYPE A4988
//#define Z2_DRIVER_TYPE A4988
//#define Z3_DRIVER_TYPE A4988
//#define Z4_DRIVER_TYPE A4988
//#define I_DRIVER_TYPE  A4988
//#define J_DRIVER_TYPE  A4988
//#define K_DRIVER_TYPE  A4988
#define E0_DRIVER_TYPE A4988
//#define E1_DRIVER_TYPE A4988
//#define E2_DRIVER_TYPE A4988
//#define E3_DRIVER_TYPE A4988
//#define E4_DRIVER_TYPE A4988
//#define E5_DRIVER_TYPE A4988
//#define E6_DRIVER_TYPE A4988
//#define E7_DRIVER_TYPE A4988

Of the configuration.h file?

The following options are available:

 * Options: A4988, A5984, DRV8825, LV8729, L6470, L6474, POWERSTEP01,
 *          TB6560, TB6600, TMC2100,
 *          TMC2130, TMC2130_STANDALONE, TMC2160, TMC2160_STANDALONE,
 *          TMC2208, TMC2208_STANDALONE, TMC2209, TMC2209_STANDALONE,
 *          TMC26X,  TMC26X_STANDALONE,  TMC2660, TMC2660_STANDALONE,
 *          TMC5130, TMC5130_STANDALONE, TMC5160, TMC5160_STANDALONE
 * :['A4988', 'A5984', 'DRV8825', 'LV8729', 'L6470', 'L6474', 'POWERSTEP01', 'TB6560', 'TB6600', 'TMC2100', 'TMC2130', 'TMC2130_STANDALONE', 'TMC2160', 'TMC2160_STANDALONE', 'TMC2208', 'TMC2208_STANDALONE', 'TMC2209', 'TMC2209_STANDALONE', 'TMC26X', 'TMC26X_STANDALONE', 'TMC2660', 'TMC2660_STANDALONE', 'TMC5130', 'TMC5130_STANDALONE', 'TMC5160', 'TMC5160_STANDALONE']
