I would like to replace a NEMA 17 stepper motor for my FLSun SR (it clicks and the rotor eventually slides forward, causing it to offset layers). How do I find the specs for this motor? They aren't listed on FLSun's website and I tried their contact us form. The back of the motor has this written on it:

FLSUN STEP MOTOR
42BYGH718-B-28Q
LOT NO.210711

The total length of the motor is 47 mm.

agarza
  • 1,559
  • 2
  • 15
  • 33
SoloCrowd
  • 11
  • 2
  • 1
    [Hybrid Stepper Motor 42BYGH Series](https://www.promoco-motors.com/products/StepperMotors/42BYGH%20Series.pdf) – Mick Jun 21 '22 at 06:51

1 Answers1

1

As mentioned in the comments by Mick. The full datasheet can be found on promoco-motors.com. Below is a table with electrical specifications from the mentioned datasheet.

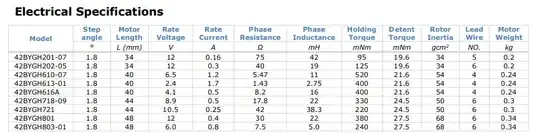

electrical specifications of 42BYGH stepper motor
