I have created my own tool changer for my 3D Printer but I'm having an issue with the Z-offset for each head.

  • Firmware: Marlin 2.1
  • Slicer: Cura

I have used the offset wizard to get the Z-offset of each head from the bed and then I tried to use the following G-code (M851 Z-4.3) in the Extruder Start G-Code and I have done this for each head, I can see it has changed on the screen in the configuration menu but it looks like it has had no effect as the print has already started.

What is the best way for me to set each offset for all my extruders?

0scar
  • 35,554
  • 12
  • 65
  • 151
Rickstar
  • 123
  • 4

1 Answers1

2

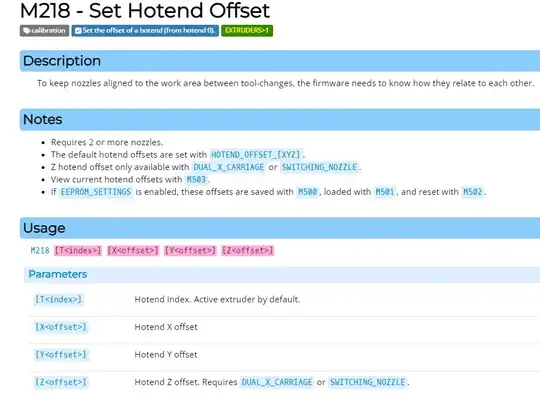

There is a specific code to set the offset between the various tools. This G-code is called M218 - Set Hotend Offset.

enter image description here

0scar
  • 35,554
  • 12
  • 65
  • 151
  • @0scar, how is it possible to "view the current hotend offsets with M503"? Where I can read this result value? Here there is an explanation: https://marlinfw.org/docs/gcode/M503.html, but currently is beyond my knowledge... – Mark Mar 13 '23 at 10:57
  • 1
    This may help you understand: https://3dprinting.stackexchange.com/questions/10573/what-is-a-printer-console-terminal – 0scar Mar 13 '23 at 22:50
