I am having this issue with stringing when printing these small clay cutters. The stringing is across any small cut out area. I have calibrated the temp, retraction distance, retraction speed, and E-Step. Maybe I need to calibrate flow as well for this issue?

Printer: Ender 3 S1 Pro

Filament: PLA

Settings:

Temp:195C

Retraction distance: 0.3mm

Retraction speed: 45mm/s

Retraction minimum travel: 0mm (so retraction can happen over the small areas)

Here are my print results

Is there anyway to optimize the path of the hot end? The stringing perfectly follows how the hot end jumps over the different cutter areas.

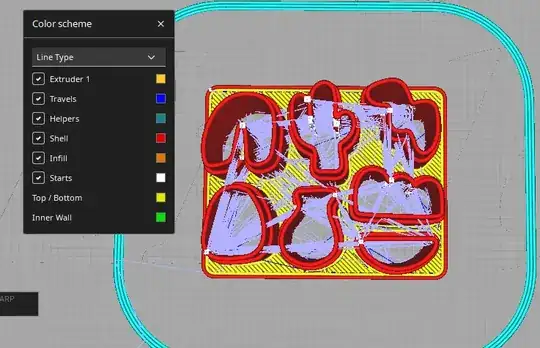

Here is what my hot end travel looks like in Cura

And just for reference, 0.3mm for retraction distance seemed low from what I've been reading online, but this is the retraction tower I ran and how I got that number:

Here is my retraction tower

Just today I got my filament in a dryer and it has been running all day, so the filament should be dry.

I'm willing to try any calibration again or literally anything! Thank you
