Anet A8 LCD shows garbage data after done printing

Question

I have an Anet A8, and recently updated the firmware to Marlin 1.1.8. My only change was replacing the configuration files by the Anet A8 sample files built in with the firmware zip file.

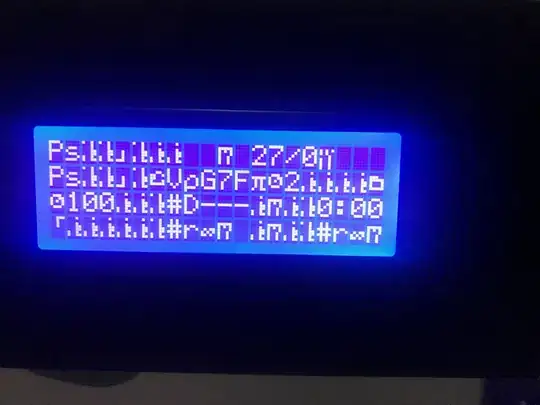

Everything works fine but, sometimes, right after finishing a printing (while doing the "home all"), the LCD shows some weird data, like this:

The same happens when push the "confirm", after the mesh bed leveling.
I'd like to know why it happens. Is it a Marlin bug?

Welcome to 3D Printing! I take it you have to reset the printer in order to get it to clear? — Pᴀᴜʟsᴛᴇʀ2, Jul 04 '18 at 21:52
Just active the menu display, the best solution is to shield your shield, Gianluca has part of the solution — Fernando Baltazar, Aug 28 '18 at 06:49

0scar · Accepted Answer · 2018-07-04T22:19:44.327

5

This is a known problem of the Anet A8 display, it is caused by electrical interference. Pressing the middle button will refresh the display.

This is prone to happen when doing long prints.

There are some reported successes of people inserting ferrite beads or toroidal rings.

No, this is not a firmware issue, this is a hardware issue.

edited Jul 04 '18 at 22:19

answered Jul 04 '18 at 21:54

0scar

35,554
12
65
151

My first though was about the Marlin because with the original firmware it never happened. So, I'm guessing now it was pure luck. Pushing the middle button indeed refreshes the display, except for the first character, that remains messy. – elias Jul 05 '18 at 00:09
Yes, this happens with unprotected shields and when we use a kind of polyester cloth and we are so close to the drivers. So be aware to avoid to use this kind of cloth, use cotton clothes. – Fernando Baltazar Jul 05 '18 at 03:15
@Elias Maybe pulling the flat cable from the sockets and re-inserting the plugs helps. Also keep the flat ribbon cable away from the 12V wires. – 0scar Jul 05 '18 at 06:14
Worked for me! Easy fix, just used on old ferrite ring and looped the display wire through it! – Felix Aug 27 '18 at 14:39

score 4 · Answer 2 · answered Jul 26 '18 at 12:19

4

I have solved completely, I covered the flat cable, with copper tape, this shield should be connected to the 0V of the power supply. All disorders will disappear.

answered Jul 26 '18 at 12:19

Gianluca

41
1

score 2 · Answer 3 · edited Oct 14 '19 at 11:17

2

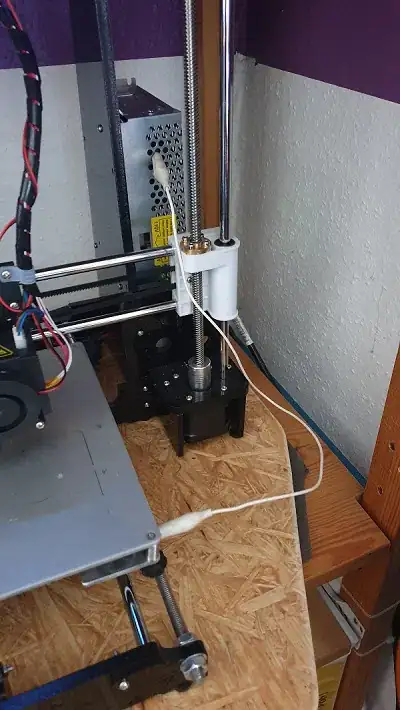

I had this issue for a long time and finally I tried a super-simple hack. Attach a testlead from bed to PSU (which is grounded). Problem solved!

In other words: The Marlin firmware may be more "sensitive" than the original stock firmware, but it is not really a firmware issue.

edited Oct 14 '19 at 11:17

Greenonline

6,308
8
36
65

answered Oct 14 '19 at 09:03

Jacob

21
1
