I have print problems with my Creality Ender 3 S1 and I have calibrated all axes:

  • Belts both X and Y axex
  • Extremes of the X-axis horizontal structure have the same distance to the bottom of the printer
  • Wheels both the X-axis and Y-axis (wheels under the bed) are correct

However, after I printed the cube the results weren't good enough. Print details:

  • I have provided the 3mf file
  • PLA
  • Ender 3 S1
  • 0,24 mm (first layer 0,20 mm)
  • Speed: perimeters 60 mm/s (external perimeters 50 %)
  • Speed: solid infill 30 mm/s; top solid infill 15 mm/s

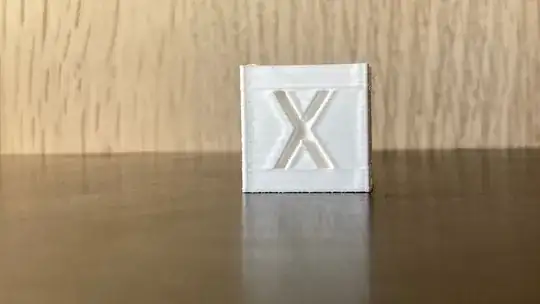

Photo of the X side of a calibration cube

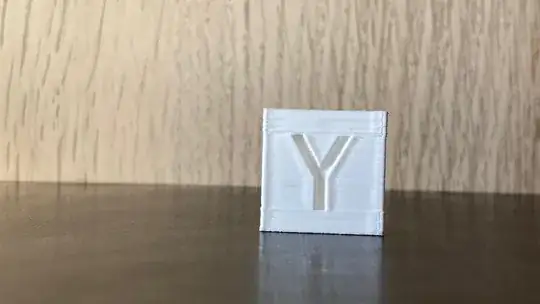

Photo of the Y side of a calibration cube

Photo of the Z side of a calibration cube

agarza
  • 1,559
  • 2
  • 15
  • 33
John Miller
  • 11
  • 3
  • Usually the first layer is bigger than the rest. How fast are you printing? It looks as if it is printed really fast. – 0scar Jan 12 '24 at 17:21
  • @0scar I updated the post with data about print speed, however I answer your question below: - Speed: perimeters 60mm/s (external perimeters 50%) - Speed: solid infill 30mm/s; top solid infill 15mm/s – John Miller Jan 12 '24 at 19:58

0 Answers0
